Electronics By Robosoft Labs

• Robosoft Labs PIC 40PIN Development Board with 16F877A, MAX232 , RTC , AT24C32, ULN2003 IC , LCD & PROGRAMMER
• 4 Seven Segment Mulitplexed Display, PICKIT2 & PICKIT3 Programmer support interface
• 4x4 Matrix Key Pad, 4 Seven Segment Mulitplexed Display, RTC , ADC, ULN2003 & AT24C32 INTERFACE
• RS232 for Serial Communication
• LED ARRAY

• Robosoft Labs 4 Channel +5V/6V Relay Board Module For 8051 PIC AVR ARM Arduino AVRDuinoRASP Pi
• This is a 4-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller(Arduino , AVRDuino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
• Features: 4-Channel Relay interface board Equiped with high-current relay, Rating are as follows: 1) 7A-250v AC 2) 10A-125V AC 3) 12A 120V DC 4) 10A 28V DC Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) Has the fixed bolt hole and easy installation Small board PCB size four ways of relay status indicator LED (red)
• Module interface specifications (6 wire) 1. External +5V 2. GND external GND 3. IN1-IN4
• Note: Relay and Component Colors varies as per availability.

• Robosoft Labs 28PIN AVR's ATMEGA328P Development Board (With ATMEGA328 Microcontroller)
• This is the new 28PIN AVR's ATMEGA328P Development Board . In addition to all the features of the previous board, the AVR Development Board now uses an ATmega328 (32 KFlash Memory) which can be programmed through any AVR programming software. This allows for faster transfer rates, no drivers needed for Linux or Mac (inf file for Windows is needed).
• Features: ATmega328 microcontroller (Self Programmable) CAN be used as AVR's 28 PIN ATMEGA328 DEVELOPMENT BOARD. Buit In Power Supply : Input voltage - +7-+12V 14 Digital I/O Pins (6 PWM outputs) 6 Analog Inputs 32k Flash Memory 16Mhz Clock Speed No Need of any Programmer
• Package Contents: 1) 28PIN AVR Development Board (With ATMEGA328 MICROCONTROLLER) 2) INSTRUCTION MANUAL (Will be sent through Email) 3) DRIVER DETAILS (Will be sent through Email) 4) USB CABLE ( FOR CONNECTING AVRDUINO WITH PC/LAPTOP)
• Note: Product and components Color varies as per availability.

• Robosoft Labs AVR (ATMEGA 16 / ATMEGA32) DEVELOPMENT BOARD With MAX232 and ATMEGA16 IC
• DIL40 microcontroller socket Quartz crystall 8Mhz 1 LED in PA.0 Reset button
• Power plug-in jack Extension slot on every uC pin GND bus Vcc bus. Four mounting holes 3,3 mm (0,13\")
• RS232 for Serial Communication, Supports USBasp PROGRAMMER INTERFACE
• JTAG interface ISP programming Interface Built in serial Port Built in Max232 (RS232 to TTL Converter)

• Encoder decoder board with ht12e , ht12d ic and address line selector switch
• Easy interfacing with the rf modules, using the female headers for placing the modules. Breakout pins for connecting to the microcontroller
• 4 switches for manual testing status led's and switch button. Small size
• On board power regulator. Address line selector switch
• Note: colors varies as per availability

• Robosoft Labs PIC 40 PIN Microcontroller Development Board with RS232 IC
• 4 Seven Segment Mulitplexed Display, PICKIT2 and PICKIT3 Programming Support
• 4x4 Matrix Key Pad, 4 Seven Segment Mulitplexed Display, RTC , ADC, ULN2003 & AT24C32 INTERFACE
• RS232 for Serial Communication, LED ARRAY
• Note: Relay and Component Colors varies as per availability.

• Robosoft Labs PIC 40PIN Development Board with 16F877A, MAX232 , RTC , AT24C32, ULN2003 IC
• 4 Seven Segment Mulitplexed Display, PICKIT2 & PICKIT3 Programmer support interface
• 4x4 Matrix Key Pad, 4 Seven Segment Mulitplexed Display, RTC , ADC, ULN2003 & AT24C32 INTERFACE
• RS232 for Serial Communication, LED ARRAY
• Note: Relay and Component Colors varies as per availability.

• Robosoft Labs 8051 / 8052 / AVR USBasp Programmer
• Features Flash Burner for AVR Series from ATMEL and 8051/8052 Microcontrollers. Communication - USB. Auto Erase before writing and Auto Verify after . Freeware AVR GCC C Compiler. ISP Programming Socket. Connects through AVR DUDE. USB Powered.
• Device Support: AT89s51, AT89s52, AT89s53, AT89s8253, AT90S1200,2313,2323,2343,4414,4433,4434,8515,8535, ATMEGA103,128,1280,1281,16,161,162,163,165,168,169, ATMEGA 560,2561,32,323,325,3250,329,3290,406,48,64, ATMEGA 640,644,645,6450,649,6490,8,8515,8535,, ATTINY 11,12,13,15,22,2323,25,26,261,28,44,45,461,84,85,86, AT90CAN128,32,64 - AT90PWM2,3.
• Package Contents: 8051/8052/AVR USBasp Programmer, USB Port Cable, 6 Burg Cable Female 2 Female, Programmer Driver (will be sended through Email), Programming Software For AVR and 8051. (will be sended through Email).
• Note: Component Colors varies as per availability.

• Robosoft Labs 2Pcs LDR Photosensitive Resistance Sensor Module for Arduino AVR Rasp Pi 8051
• Module features: 1, the sensitive type photosensitive resistance sensor 2, the comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma. 3, with adjustable potentiometer can detect light brightness adjustment 4, the working voltage of 3.3 V to 5 V 5, the output form: DO digital switch output (0 and 1) 6, has a fixed bolt hole, convenient installation 7, small board PCB size 8, using the LM358 voltage comparator
• Product connection details: 1, VCC power supply positive 2, GND connect power cathode 3, O/P TTL switch signal output
• Note: Component Colors varies as per availability.

• Robosoft Labs Line Following Robot Using Microcontroller ARDUINO BASED- DIY (Do It Yourself) Kit
• Line follower is an autonomous robot which follows either black line in white arena or white line in black arena. Robot must be able to detect particular line and keep following it. OUR LINE FOLLOWER FOLLOWS SIMPLE BLACK LINE.
• PACKAGE INCLUDES : 1) A ASSEMBLED LINE FOLLOWER ROBOT, 2) FREE ACCESSORIES
• Points to be noted: 1) This LINE FOLLOWER ROBOT is ASSEMBLED BY PRE-FABRICATED PARTS, 2) Supply: Please use Only High Power +9V battery supply (Batteries not Included as it can't be shipped), 3) A ASSEMBLED WORKING LINE FOLLOWER ROBOT will be sent, Its a DO IT YOURSELF PROJECT KIT that means firstly you have to disassemble the Kit by unscrewing the nuts and bolts (Disassembling is also a process of learning as well) and then assemble it according to the tutorial guide provided to you from us.
• Note: Components used and its colors may vary according to availability.

• Robosoft Labs RF Controlled Wireless Robot using ARDUINO DIY (DoItYourself) Kit
• Motor control through RF communication is a very interesting application and is widely used in robotics, electronics toys, automation systems etc. This topic covers the way DC motors can be driven by using the controls from a distant place. The controls are transferred from one end to another by employing an RF module. The remote control application of RF has been extended to operate a motor driver which in turn controls the direction of motors.
• PACKAGE INCLUDES : 1) A ASSEMBLED RF Controlled Wireless Robot using Microcontroller DIY (DoItYourself) Kit, 2) RF TRANSMITTER REMOTE AS SHOWN IN PICTURE, 3) FREE ACCESSORIES,
• Note: 1) This RF Controlled Wireless Robot using Microcontroller DIY Kit is ASSEMBLED BY PRE-FABRICATED PARTS. 2) Supply : High Power +9V battery supply (Batteries not Included ), 3) A TUTORIAL GUIDE TEACHING HOW TO ASSEMBLE THE ROBOT FROM SCRATCH PARTS TO A RF Controlled Wireless Robot KIT WILL BE PROVIDED through EMAIL after KIT is delivered.
• Note: Components used and its colors may vary according to availability, A ASSEMBLED WORKING RF Controlled Wireless Robot using Microcontroller DIY Kit will be sent, Its a DIY KIT that means firstly you have to disassemble the Kit by unscrewing the nuts and bolts (Disassembling is also a process of learning as well) and then assemble it according to the tutorial guide provided to you from us,

• 8051/8052 (40 pin microcontrollers) Development Board
• 4 Seven Segment Mulitplexed Display, RTC , ADC, ULN2003 & AT24C32 INTERFACE
• 4x4 Matrix Key Pad
• RS232 for Serial Communication
• LED ARRAY , ONBOARD POWER SUPPLY

• Robosoft Labs 8051 / 8052 Board with AT89S52, MAX232 , RTC , AT24C32, ULN2003 IC & PROGRAMMER
• 4 Seven Segment Mulitplexed Display, RTC , ADC, ULN2003 & AT24C32 INTERFACE
• 4x4 Matrix Key Pad, RS232 for Serial Communication
• LED ARRAY , ONBOARD POWER SUPPLY
• Note: Software's and drivers will be sent through E-mail.

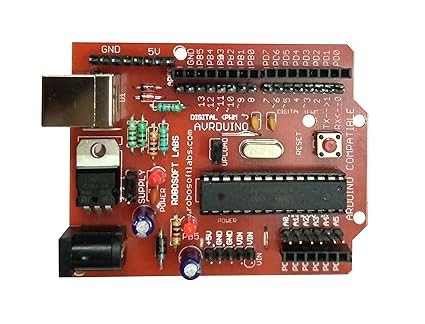

• Robosoft Labs AVRDuino ( Arduino Compatible ) (With ATMEGA8 Microcontroller)
• This is the new AVRDUINO (Arduino compatible) Board . In addition to all the features of the previous board, the AVRDUINO now uses an ATmega8 which can be programmed through Arduino software as well as any AVR programming software. This allows for faster transfer rates, no drivers needed for Linux or Mac (inf file for Windows is needed).
• Features: ATmega8 microcontroller (Self Programmable) CAN be used as ARDUINO Board as well as AVR's 28 PIN ATMEGA8 DEVELOPMENT BOARD. Buit In Power Supply : Input voltage - +7-+12V 14 Digital I/O Pins (6 PWM outputs) 6 Analog Inputs 8k Flash Memory 16Mhz Clock Speed No Need of any Programmer
• Package Contents: 1) AVRDuino Board (With ATMEGA8 MICROCONTROLLER) 2) INSTRUCTION MANUAL(Will be sended through Email) 3) DRIVER DETAILS(Will be sended through Email) 4) USB CABLE ( FOR CONNECTING AVRDUINO WITH PC/LAPTOP)
• Note: Product and components Color varies as per availability.

• Robosoft Labs 30A +12V Relay Board Module With optocoupler Protection For 8051 PIC AVR ARM ARDUINO
• This is a 30A +12V 1-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller(Arduino , AVRDuino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
• Features: 30A +12V 1-Channel Relay interface board Equiped with high-current relay, Rating are as follows: (1) 30A 120VAC/1HP (2) 30A 240VAC/2HP Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) Has the fixed bolt hole and easy installation Small board PCB size Relay status indicator LED (red) With Optocoupler protection
• Module interface specifications (4 wire) 1. External +5V 2. External GND 3. CTR interchange relay control interface (3.3v or 5V Logic) 4. RS (Relay Supply) +12V Package included: 30A +12V Relay Board Module With optocoupler For 8051 PIC AVR ARM ARDUINO
• Note: Relay and Component Colors varies as per availability.

• Robosoft Labs 4 DIGIT MULTIPLEXED SEVEN SEGMENT DISPLAY (COMMON CATHODE)
• Seven segment selector pins 0,1,2,3
• Seven segment display pins A,B,C,D,E,F,G, DEC, GND
• Four mounting holes 3,3 mm (0,13\")
• Note: Colors varies as per availability.
