Motherboard By MY TechnoCare - Means Your Care

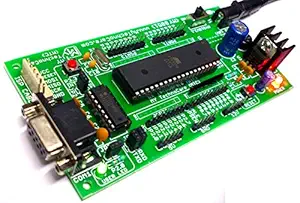

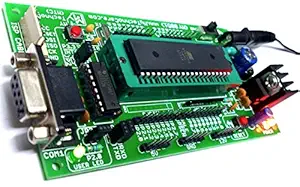

• This 8051 Microcontroller Board has DIP 40 Pin ZIF (Zero Insertion Force) Socket For Easy Insert/Remove of IC.ZIF Socket Protect Your Microcontroller From Damage.8051 Microcontroller Board comes With Atmel AT89S52 Microcontroller ic & RS232 chip | Borad can Support AT89S51, AT89S52, P89V51RD2, 8052 etc. 40-Pin DIP Chip | High quality FR-4(1.6 mm) PCB
• On-board RS232 Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, RFID etc) | Extra Vcc bus (5V and 12V) & GND bus for POWER Supply to the External Peripheral
• On-board bridge rectifier so 8051 Development board can accept both AC & DC Input voltages Power suppluy | 5mm Power Plug-in DC Jack | Power ON OFF switch | 5V regulator (LM7805) circuit | Power indication RED LED
• OnBoard Reset button | Quartz Crystal 11.05892 MHz | GREEN USER LED at Pin P2.0 | Input User Switch Pin P3.3 | Input External Interrupt Switch (INT1) at P3.3 through jumper JP2
• Port Extensions for all PORT with Detailed Labeling for Easy Identification of Pin | External Pull-Up resistors for Port | On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc. | Four 3mm mounting hole for Easy Mounting | Please Contact Seller,For Download Link of 8051 Kit User Manual.

• This Product Listing is Created By \"MY TechnoCare\". | Please Buy ORIGINAL Product From \"MY TechnoCare\" Store. | NO SUPPORT will be Given for FAKE / CLONE Products Sold by OTHER STORES. | | NOTE : POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM.
• PROGRAMMER FEATURES: There is 5V USB Supply Option for Target so No Need of Any External Supply. |Allows You to Read or Write the Microcontroller Flash, EEPROM, Fuse Bit and Lock Bits | 6 Pin Polarized ISP Interface Connector | 5KB/sec Maximum Write Speed. SCK Option to Support Targets with Low Clock Speed (<1.5MHz). | Support for Windows, Mac OS X and Linux. | \"PLEASE, DOWNLOAD Driver Installation Guide for Windows 8 FROM ABOVE LINK
• 8051 BOARD FEATURES :Onboard RS232 Interface for serial communication with jumper. | On board power indication & Power plug-in jack | GND Bus & Vcc Bus(5V and 12V DC) to Supply Power External Device | ISP Programming Pin Out. & Four Mounting Holes 3.0 mm for Easy Mounting | Extra User Peripheral(OnBoard): User LED Green (P2.0 Pin) | User Switch P3.3 | On Board External Interrupt Switch (INT1) | Extension Slot on every Microcontroller Pin

• This Product Listing is Created By \"MY TechnoCare\". | Please Buy ORIGINAL Product From \"MY TechnoCare\" Store. | NO SUPPORT will be Given for FAKE / CLONE Products Sold by OTHER STORES.
• PROGRAMMER FEATURES: There is 5V USB Supply Option for Target so No Need of Any External Supply. |Allows you to Read or Write the Microcontroller Flash, EEPROM, Fuse Bit and Lock Bits | 6 Pin Polarized ISP Interface Connector | 5KB/sec Maximum Write Speed. SCK Option to Support Targets with Low Clock Speed (<1.5MHz). | Support for Windows, Mac OS X and Linux. | \"PLEASE, DOWNLOAD Driver Installation Guide for Windows 8 FROM ABOVE LINK
• 8051 BOARD FEATURES :Onboard RS232 Interface for serial communication with jumper. | On board power indication & Power plug-in jack | GND Bus & Vcc Bus(5V and 12V DC) to Supply Power External Device | ISP Programming Pin Out. & Four Mounting Holes 3.0 mm for Easy Mounting | Extra User Peripheral(OnBoard): User LED Green (P2.0 Pin) | User Switch P3.3 | On Board External Interrupt Switch (INT1) | Extension Slot on every Microcontroller Pin

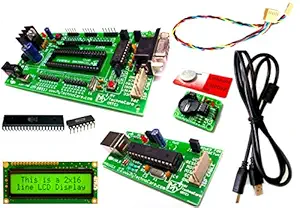

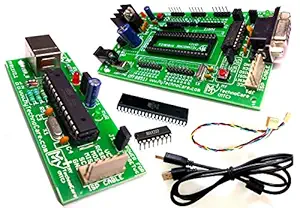

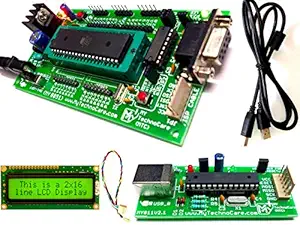

• MY TechnoCare 8051 Development Board With USB Programmer Kit Support Window,Mac OS X,Linux|Easy Prototype with 8051 Microcontroller,High Quality FR4 PCB
• 8051 Kit Support 8051,8052 40-Pin ICIOn-board RS232 for Easy Communication with PC & other Serial device GPS,GSM Modem
• GND&Vcc Bus(5V and 12V DC) to Supply Power External Device|O/P LED (P2.0 Pin)|I/P Switch P3.3|External Interrupt Switch (INT 1)
• USB ISP Programmer support both 8051 & AVR IC (2in1)|5V USB Supply Option so No Need Any External Supply|Read/Write Microcontroller Flash,EEPROM,Fuse,Lock Bit|5KB/s Max Write Speed|SCK Option Support Targets with Low Clock Speed(<1.5 MHz)
• Please Contact Seller,For Driver Download Link(Window OS 64|32-bit)| How To Install Driver & Program 8051 AVR IC |Circuit Diagram-Connection|BECAUSE AMAZON DOES NOT ALLOW TO WRITE LINK HERE

• 8051 Development Board comes With Atmel AT89S52 Microcontroller ic & RS232 chip | DIP 40 Pin IC Socket For Easy Insert/Removal of Chip | Borad can Support AT89S51, AT89S52, P89V51RD2, 8052 etc. 40-Pin DIP Chip | High quality FR-4(1.6 mm) PCB
• On-board RS232 Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, RFID etc) | Extra Vcc bus (5V and 12V) & GND bus for POWER Supply to the External Peripheral
• On-board bridge rectifier so 8051 board can accept both AC & DC Input voltages Power suppluy | 5mm Power Plug-in DC Jack | Power ON OFF switch | 5V regulator (LM7805) circuit | Power indication RED LED
• OnBoard Reset button | Quartz Crystal 11.05892 MHz | GREEN USER LED at Pin P2.0 | Input User Switch Pin P3.3 | Input External Interrupt Switch (INT1) at P3.3 through jumper JP2
• Port Extensions for all PORT with Detailed Labeling for Easy Identification of Pin | External Pull-Up resistors for Port | On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc. | Four 3mm mounting hole for Easy Mounting | Please Contact Seller,For Download Link of 8051 Kit User Manual

• This Product Listing is Created By \"MY TechnoCare\" | Please Buy ORIGINAL Product From \"MY TechnoCare\" Store.| NO SUPPORT will be Given for FAKE / CLONE Products Sold by OTHER STORES.
• Onboard RS232 Interface for serial communication with jumper. | On board power indication & Power plug-in jack
• GND Bus & Vcc Bus(5V and 12V DC) to Supply Power External Device
• ISP Programming Pin Out. & Four Mounting Holes 3.0 mm for Easy Mounting | Extra User Peripheral(OnBoard): User LED Green (P2.0 Pin) | User Switch P3.3 | On Board External Interrupt Switch (INT1) | Extension Slot on every Microcontroller Pin

• 5V Relay Module Single Channel Expansion Board Circuit is Compatible with Arduino , Raspberry Pi and all other Microcontroller Development Board.
• 5v Relay Board Control Both AC and DC Appliances such as Solenoids, Motors, Lights, Fans used in Home Automation,Office,Industrial Project.
• Fre-Wheeling Diode to Protect your Micro-controller.Screw Terminals (com,nc,no) for Quick and Easy Connection.3 Pin Input signal pin (2.54 mm) connected to burg stick for Easy Interface with microcontroller.
• On board RED LED status indicator to indicate Power Supply status, GREEN LED status indicator to indicate the Relay ON/OFF status
• All modules with signal input 3.3v to 5v(3.3v to 5v for 5v logic) with vcc 5v. Four Mounting Holes 3.0 mm for Easy Mounting

• This Product Listing is Created By \"MY TechnoCare\" | Please Buy ORIGINAL Product From \"MY TechnoCare\" Store.| NO SUPPORT will be Given for FAKE / CLONE Products Sold by OTHER STORES.

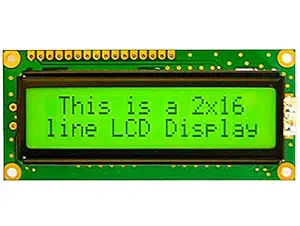

• LCD Display Module With Yellow or Green BackLight | SIZE : 16x2 (2 Rows and 16 Characters Per Row) | Image Aspect Ratio: 5x7 Pixel Per Character
• Type: 162A Alphanumeric LCD Display | Image Brightness: Adjustable Resistor Controlled | Bundled Items:1 x Yellow LCD 16x2
• Power Supply: 5 Volt DC | Memory: Internal CG(Character Generate) RAM | Functionality: Alphanumeric Character Display | Communication Port: Parallel Wire | Wired or Wireless: Wired
• Installation: Four Mounting holes 3.0 mm for Easy Mounting | Chipset: Industry standard HD44780 equivalent | Utility: Research & Development | Education | Technical DIY | BackLight: Yellow/Green

• 5V Relay Module Single Channel Expansion Board Circuit is Compatible with Arduino , Raspberry Pi and all other Microcontroller Development Board
• 5v Relay Board Control Both AC and DC Appliances such as Solenoids, Motors, Lights, Fans used in Home Automation,Office,Industrial Project
• Fre-Wheeling Diode to Protect your Micro-controller.Screw Terminals (com,nc,no) for Quick and Easy Connection.3 Pin Input signal pin (2.54 mm) connected to burg stick for Easy Interface with microcontroller
• On board RED LED status indicator to indicate Power Supply status, GREEN LED status indicator to indicate the Relay ON/OFF status
• All modules with signal input 3.3v to 5v(3.3v to 5v for 5v logic) with vcc 5v. Four Mounting Holes 3.0 mm for Easy Mounting
