Electronics Store - Computer Peripherals - Components - Motherboard

• Form Factor: microATX
• CPU: Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP
• 4x 288-pin DDR4 DIMM slot, Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
• Intel B250 Express Chipset
• 6 SATA3 (6Gbps) ports

• 12TH & 13TH GEN CORE, EXTREME PERFORMANCE - The MEG Z790 ACE employs a 24 DRPS (105A, SPS) VRM system for the Intel Z790 chipset (LGA 1700, 12th & 13th Gen Core); Core Boost architecture unlocks the full potential for multi-core overclocking
• ULTIMATE COOLING - VRM cooling features a direct touch corss heat-pipe to 2 heavy-plated Fin Array MOS heatsinks, 7W/mK MOSFET thermal pads with extra choke pads, double-sided M.2 Shield Frozr & an 8-layer server-grade PCB with 2 oz. thickened copper
• DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7800+ MHz); 2 x PCIe 5.0 x16 Steel Armor slots supports the primary graphics card (tertiary PCIe 4.0 x16 slot)
• QUINTUPLE M.2 CONNECTORS - Premium storage options consist of 1 x M.2 Gen5 x4 128Gbps slots and 4 x M.2 Gen4 x4 64Gbps slots with double-sided Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips
• EXCELLENT CONNECTIVITY - Network includes an Intel Wi-Fi 6E module with Bluetooth 5.2 & dual 2.5Gbps LAN; Rear ports include 2 x Thunderbolt 4 (USB Type-C, 40Gbps) & Mini DP input & 7.1 USB High Performance Audio with Audio Boost 5 HD (S/PDIF output)

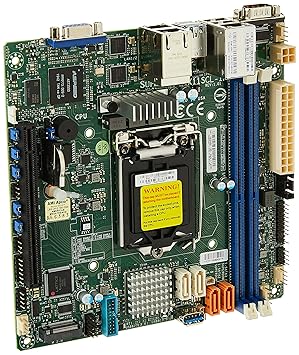

• Intel C242 Chipset
• Up to 64GB DDR4 2666MHz ECC UDIMM; 2 DIMM slots
• Dual Gbe LAN with Intel i210-at
• 4 SATA3 (6Gbps); RAID 0, 1, 5, 10
• M. 2 NGFF connector

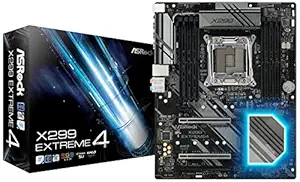

• Intel X299
• Chip Set
• ATX Motherboard
• X299 Extreme4

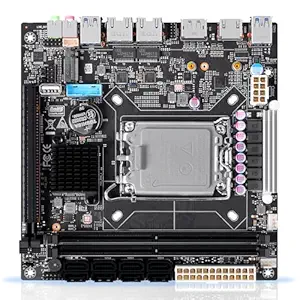

• LGA1700 Socket: Q670 8-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors (DO NOT recommend the K-Series processors), which are more energy efficient. It's 6.7\" x 6.7\" mini-ITX form factor, basic TDP is 65W, and it supports Windows 10/11, Linux
• i226-LM Port: This Q670 NAS motherboard has 1* i226 2.5GbE port and 1* i226-LM 2.5GbE port. i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system
• High Productivity: 2* USB3.2 Gen2(Type-C) with 20Gbps, 8* Native SATA3.0 with 6Gbps, stable and ultra-fast transfer speed. 2* desktop U-DIMM DDR5 RAM(for 12th Gen. CPU, it supports 4800MHz by default; for 13th Gen. CPU and above, it supports 5600MHz by default), MAX 128GB, 1* M.2 NVMe (PCIe3.0 x4) 2280, 1* M.2 NVMe (PCIe4.0 x4) 2280 and 1* M.2 NVMe (PCIe4.0 x4) 2280/22110 onboard
• Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz, and it has PCIe5.0 x16 slot which can be expanded to graphics cards, PCI-E network cards, support for various types of PCI-E protocol expansion accessories
• Heat Dissipation: It is compatible with LGA115x or LGA1700 series processors cooling fan
• NOTE: The motherboard requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing \"DEL\" while booting up

• System ram type: ddr4_sdram
• Package Weight: 2.381 kilograms
• Package Dimensions: 12.7 L x 45.72 H x 38.1 W (centimeters)
• Country of Origin: China

• CPU (Included): Intel Atom C2758 Processor; Supports up to 20W TDP (Eight-Core)
• Memory: 4x 240pin DDR3-1600/1333 UDIMM Slots, ECC/Non-ECC, Max Capacity of 64GB
• Slots: 1x PCI-Express 2.0 x8 Slot, 1x PCI-Express 2.0 x4 Slot
• SATA: 2x SATA3 Ports, 4x SATA2 Ports
• Form Factor: MicroATX
• Ports: 7x USB 2.0 Ports

• X570 Extreme 4
• Soket AM4
• Form Factor: ATX
• Memory Specification 1: 4 x DDR4
• Power Source: 10 Digital

• LGA1151, Supports Intel Xeon E3-1200 v5 Processor; Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors; Support up to 80W TDP
• Chipset: Intel C232
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 2x PCI-Express 3.0 x8 Slots (one runs at x4)
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm

• Powerful Processor-6-Bay NAS board is compatible with Intel N100 Quad Core Processor, 4 threads, up to 3.4GHz, it's 6.7\" x 6.7\" mini-ITX form factor, integrated UHD graphics card, basic TDP is 6W, and it supports Windows 10/11, Linux.
• Large Capacity-1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.
• Smooth Networking-This NAS motherboard has 4* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
• Ultrafast Connectivity-1* USB3.0, 1* Type-C(USB2.0), 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
• Heat Dissipation-This NAS board comes with a cooling fan to improve heat dissipation efficiency, and the fan's mounting space supports standard LGA115X, the hole spacing is 75mm*75mm.
• DIY NOTE-The 2nd M.2 slot and the PCIE3.0*1 slot share common signals, so you can only choose one or the other.

• High Performance full tower capable of extreme workstation and server systems
• Spacious open interior supports up to SSI-EEB motherboards, 480 and 360 radiators, 11 PCI slots and storage up to 10 HDDs or 11 SSDs
• Up to 15 fans can be installed of which 3 fans are positioned directly over the PCI and CPU area

• Based on AMD Artix 7 XC7A35T, with fast 256MByte (32-bit) DDR3 SDRAM, 16 MB QSPI Flash, 512 Byte EEPROM 24LC04
• 1 x Gigabit Ethernet, 1 HDMI Input and 1 HDMI out, 1 x USB2.0, 1 x UART(USB to UART), 1 x MicroSD, 1 x Temperature sensor LM75
• 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
• Suitable for Industrial controls and Video image transmission processing
• Provide Schematic, User Manual in PDF, Verilog HDL Demos and Experiments Guideline

• Supports 13th Gen & 12th Gen Intel Core Processors
• 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 6800+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort

• Microphone

• MEMORY:2*DIMM MAX 64GB DDR4
• SLOTS:1*PCIE4.0X16
• STORAGE:1*M.2 SLOTS;4*SATA 6GB/S PORTS

• CPU:INTEL SOCKET1700 FOR INTEL 12TH GEN CORE
• CHIPSET:INTEL H670
• MEMORY:4*DIMM MAX 128GB DDR4
