• Intel C242 chipset
• Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
• Expansion slots: 1 PCI-E 3. 0 x8 (in x16), 2 PCI-E 3. 0 x4 (in x8)
• Dual GbE LAN with Intel i210-at
• 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10

• LAN: 2x Intel I210-AT Gigabit Ethernet Controllers

• Supports Intel Xeon E-2100 Processors
• Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 32 GB
• 4 SATA3 (1 SATA DOM included), 1 OCuLink connector with 4 SATA ports*
• Supports 1x PCIe 3. 0 x16, 1 x M. 2
• Supports Intel I210& Intel i219LM

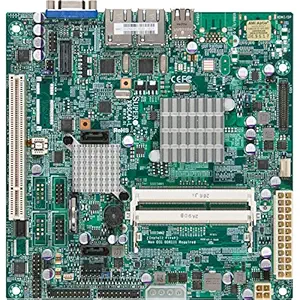

• 1Intel Atom N2800 (6.5W) Intel NM10 Express Chipset3
• ACPI / ACPM Power Management / Main Switch Override Mechanism / Keyboard Wakeup from Soft-Off / Power-on mode for AC power recovery
• HDMI, Display port, LVDS and VGA / Dual Intel 82574L GbE LAN ports
• Memory Capacity: 2x 204-pin SO-DIMM sockets, Supports up to 4GB of non-ECC DDR3 1066MHz (Single Channel)Some 1333MHz memory can be used, but memory capacity will operate at 1066MHz
• 4-pin 12V DC power input or24-pin ATX power input

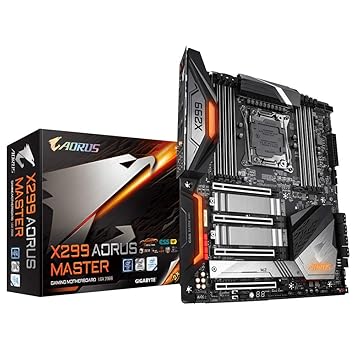

• Supports 9th Gen Intel Core x series processors
• Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
• Intel Optane Memory Ready; Support for Windows 10 64-bit
• 12 phases digital VRM solution with smart power stage
• Advanced thermal design with Fins-Array and 6mm Heatpipe

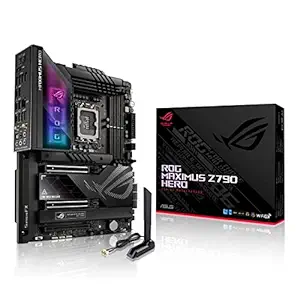

• Intel LGA 1700 socket: Ready for 13th and 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling II, AI Networking(GameFirst VI) and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 20plus1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, triple M.2 heatsinks and dual with embedded backplates, and ROG Water-Cooling Zone
• High-performance Networking: Onboard WiFi 6E,Bluetooth V5.2, Intel 2.5Gb Ethernet, and ASUS LANGaurd

• 12TH & 13TH GEN CORE, EXTREME PERFORMANCE - The MEG Z790 ACE MAX employs a 24 DRPS (105A, SPS) VRM for the Intel Z790 chipset (LGA 1700, 12th & 13th Gen Core); Core Boost architecture unlocks the full potential for multi-core overclocking
• ULTIMATE COOLING - VRM cooling features a direct touch cross heat-pipe to 2 heavy-plated Fin Array MOS heatsinks, 7W/mK MOSFET thermal pads with extra choke pads, double-sided M.2 Shield Frozr & an 8-layer server-grade with 2 oz. copper PCB
• DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 7800+ MHz); 2 x PCIe 5.0 x16 Steel Armor slots (128GB/s) support cutting-edge graphics cards (tertiary PCIe 4.0 x16 slot)
• QUINTUPLE M.2 CONNECTORS - Premium storage options include 1 x M.2 Gen5 x4 128Gbps slot and 4 x M.2 Gen4 x4 64Gbps slots with double-sided Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips
• WI-FI 7 CONNECTIVITY - Network hardware includes a Wi-Fi 7 module with Bluetooth 5.4 & dual 2.5Gbps LAN; Rear ports include 2 x Thunderbolt 4 (USB Type-C, 40Gbps), Mini DP input & 7.1 USB High Performance Audio with Audio Boost 5 HD (S/PDIF output)

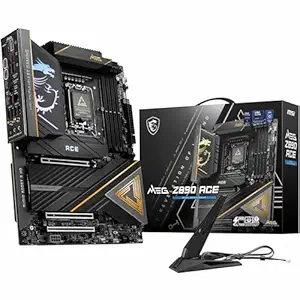

• INTEL ULTRA CORE, EXTREME PERFORMANCE - The MEG Z890 ACE employs a 24+1+2+1 DRPS (110A, SPS) VRM system for the Intel Z890 chipset (LGA 1851, Intel Ultra Core); Core Boost architecture unlocks the full potential for multi-core overclocking
• FROZR DESIGN Wavy fin design, direct touch cross heat-pipe, aluminum cover, double-sided M.2 Shield Frozr, metal backplate and Frozr AI software ensure the utmost performance with low temp.
• DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots with Memory Boost isolated circuitry for overclocking (6400+ MHz); 2 x PCIe 5.0 x16 slots supports the primary graphics card (PCIe 4.0 x4 slot)
• QUINTUPLE M.2 CONNECTORS - Premium storage options consist of 1 x M.2 Gen5 x4 128Gbps slots and 4 x M.2 Gen4 x4 64Gbps slots with double-sided Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips
• EXCELLENT CONNECTIVITY - Network includes an Intel Wi-Fi 7 module with Bluetooth 5.4 & Marvell AQC113CS 10G LAN; Rear ports include 2 x Thunderbolt 4 (USB Type-C, 40Gbps) & 7.1 USB High Performance Audio with Audio Boost 5 HD (S/PDIF output)

• Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience
• Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
• Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster

• Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature
• Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E
• Dual 2.5G LAN: Onboard dual 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience

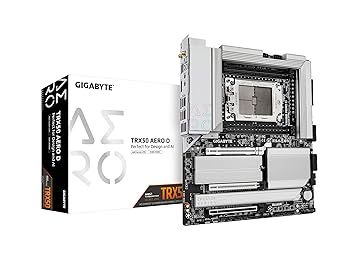

• AMD sTR5 Socket: Supports AMD Ryzen Threadripper PRO 7000 Series Processors
• Power Design: 16+8+4 Phases Digital VRM Solution
• DDR5 Compatible: 4*SMD R-DIMMs with AMD Expo & Intel XMP Support
• Cutting-Edge Thermal Design: VRM Thermal Armor, M.2 Thermal Guard
• Next Gen Connectivity: Dual USB4 Type-C, PCIe 5.0
• EZ-Latch: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
• Fast Networking: 10GbE + 2.5GbE Dual LAN and Wi-Fi 7

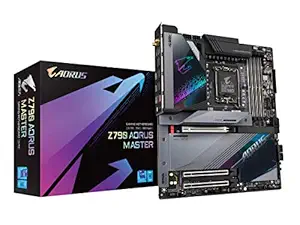

• Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
• DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support
• Commanding Power Design: Direct 20+1+2 Phases Digital VRM Solution with 105A Power Stage
• Cutting-Edge Thermal Design: M.2 Thermal Guard III, Fins-Array III with NanoCarbon Coating, 8mm Mega-Heatpipe, PCIe Ultra Durable Armor, 8-Layer PCB
• Next Gen Connectivity: SMD PCIe 5.0, 1* PCIe 5.0 x4, 4* PCIe 4.0 x4 M.2, 2* USB 3.2 Gen 2x2 Type-C
• EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
• Fast Networking: Marvell AQtion 10GbE LAN, Intel WiFi 6E 802.11ax, 2T2R & BT5
• Dynamic Audio: ESS SABRE Hi-Fi 9118 DAC, ALC 1220-VB Audio, Audiophile WIMA Capacitors
• Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
