• microATX
• Intel 6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 115W TDP/Single Socket H4 (LGA 1151)
• 6x USB 3.0, 4x USB 2.0
• 4x 288-pin DDR4 DIMM slots. Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
• Intel H170 Express Chipset
• 6x SATA3 (6Gbps) ports
• HD Audio 7.1 channel connector by Realtek ALC1150
• 1 DVI-D, 1 DP (Display Port), 1 HDMI

• Supports 13th Gen & 12th Gen and next gen Intel Core Processors
• 14+1+1 Phase Power Design, SPS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 7200+(OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
• Realtek 2.5G LAN

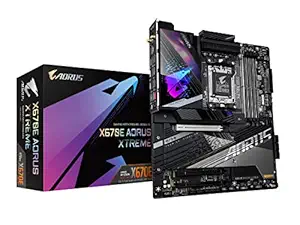

• AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
• DDR5 Compatible: 4*SMD DIMMs with ECC/Non-ECC Unbuffered Memory
• Commanding Power Design: Direct 18+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB
• Cutting-Edge Thermal Design: Fins-Array III with NanoCarbon Coating, M.2 Thermal Guard III, Ultra Durable Armor, NanoCarbon Aluminum Backplate
• Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M.2, Dual USB-C, BT 5.3
• EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
• Fast Networking: AQUANTIA 10GbE LAN, Intel WiFi 6E 802.11ax
• Dynamic Audio: DTS:X Ultra, ALC1220 CODEC and ESS SABRE Hi-Fi 9118 DAC
• Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU

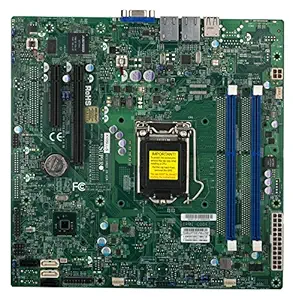

• Cpu: LGA1150, support 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron processors
• Chipset: Intel Q87 Express
• Memory: 4x 240pin DDR3-1600 DIMM slots, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3. 0 x16 Slot, 1x PCI-Express 2. 0 x4 Slot, 1x PCI-Express 2. 0 x1 Slot, 1x Mini PCI-Express slot (w/ mSATA support)
• Sata: 6x SATA3 Ports (including 1x mSATA), support RAID 0, 1, 5, 10
• Audio: Realtek ALC888S 7. 1-Channel High Definition Audio CODEC
• Form Factor: MicroATX, 9. 6 x 9. 6 inch/ 24. 4 x 24. 4 cm

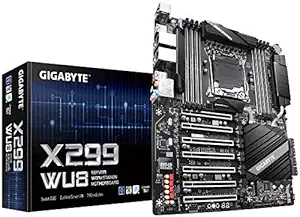

• Supports Intel Core X-Series Processor Family, Quad Channel DDR4, 8 DIMMs motherboard
• 7 PCIe x16 slots design: 2 PLX 8747 design supports total bandwidth of 64 PCIe lanes and four dual-slot graphics cards. It also supports 4-way NVIDIA SLI or AMD CrossFireX GPU configurations
• Next-gen transfer speeds: PCIe x4 M.2, USB 3.1 Type-A and Type-C connections
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Powerful heatsink design: an efficient thermal cooling design to provide absolute maximum performance

• Supports AMD Ryzen 7000 Series Processors
• 14+2+1 Phase Power Design, SPS
• 4 x DDR5 DIMMs, supports up to 6600+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type A+C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
• Killer 2.5G LAN; 802.11ax Wi-Fi 6E + Bluetooth 5.2
• Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
• Digi Power design
• 14 Power Phase design
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel K-Series unlocked CPUs

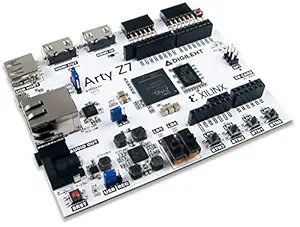

• Arty Z7 comes in two FPGA variants: Arty Z7-10 features Xilinx XC7Z010-1CLG400C. Arty Z7-20 features the larger Xilinx XC7Z020-1CLG400C.
• Program on board, over JTAG, or boot with a microSD card
• Includes HDMI sink port (input), HDMI source port (output), PWM driven mono audio output, and a variety of user interfaces
• Expansion opportunities with a dual row chipKIT/Arduino connector and two Pmod host ports
• Free software with Vivado Design Suite (WebPACK Edition) and Peta Linux references on the Digilent GitHub

• Future-Proof Performance: The MSI MEG Z690 UNIFY Motherboard is built to support the latest 12th Gen Intel Coreprocessors for the LGA 1700 socket. This motherboard is equipped to handle high-speed DDR5 memory, allowing you to maximize system responsiveness.
• Core Power: Upgrade to the MSI Gaming Motherboard with Core Boost and unlock the true potential of your multicore processor. With its premium layout, advanced digital power design, and support for more cores, this motherboard provides better performance and a seamless computing experience.
• Memory Boost: Experience the extraordinary power of Memory Boost on the MSI MEG Z690 UNIFY WiFi DDR5 ATX Gaming Desktop Motherboard. This advanced technology guarantees optimal performance, stability, and compatibility for your memory modules.
• Lightening Fast Experience: Experience unparalleled speed and performance with the MSI Motherboard For Gaming PC. Designed to deliver a lightning-fast computing experience, it harnesses the power of PCIe 4.0, which doubles the bandwidth compared to previous generations.
• Powerful PCIe Performance: The MSI motherboard features a high-speed PCIe interface for your graphics card. Enjoy improved graphics performance, faster data transfer, and immersive visuals. Upgrade your system and unleash the full potential of your graphics card with PCIe on the MSI motherboard.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1851 Socket: Ready for Intel Core Ultra processors (Series 2)
• Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
• Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
• Robust Power Solution: 18(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an C-shaped heatpipe
• Latest M.2 Support: Three PCIe 5.0 M.2 slots and four PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, ten USB 10Gbps ports , PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI 2.1 and DisplayPort 1.4
• High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5 Gb Ethernet
• DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna , BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

• CPU:INTEL SOCKET1700 FOR INTEL 12TH GEN CORE
• MEMORY:4*DIMM MAX 128GB DDR4

• The product comes in a proper packaging
• This product will be an ideal pick for you
• Easy to use

• Intel LGA 1700 Socket: Ready for Intel Socket LGA1700 for Intel Core 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
• Robust Power Solution: 18(110A)+1(110A)+2 power solution with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and are connected with an L-shaped heatpipe
• Next-Gen M.2 Support: PCIe 5.0 M.2 slot with Combo-Sink U-shaped Direct Contact heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks
• Abundant Connectivity: USB 20Gbps rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4

• Based on AMD Zynq 7000 SoC XC7Z010 XC7Z020
• With fast 1GB DDR3 SDRAM (AX7Z010B is 512MByte DDR3 ), 32 MB QSPI Flash
• Gigabit Ethernet, CAN/RS485, HDMI Output, AD Input, 1 x MIPI Input (only for AX7Z020B)
• Applied to Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc
• Provide schematic, user manual in PDF, Verilog HDL demos and experiments guideline
