MS CONTROL M S Control 1.5 HP Single phase Submersible panel pump /starter Submersible Water Pump (1.5 HP )… - Product Features
- 20 Amp MCB For 1.5 hp pump
- Better life run capacitor as per Horsepower (60 Mfd for 1.5 hp ) running of pump and better life
- Starter capacitor provided as per Horsepower (120-150 Mfd for 1.5HP ) for smooth running of pump
ms control M S control 2 HP Single phase Analog water pump panel/Submersible Water Pump(2 hp) Submersible Water Pump (2 hp) - Product Features
- MS CONTROL 2. HP Control Panel for single phase Motor Pump provided with 25 Amps BCH type Contactor 2 pole with easy replaceable heavy duty fixed and moving contacts and Coil Voltage range between 140-220 Volts with easy replacement of coil.
- Switching device provided-Single Pole ( Automatic MCB ) Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 25 Amps which ensures protection against short circuit.
- Start Capacitors of rating 150-200 Mfd provided for giving initial torque to motor of 2. HP connected to Start Button which charges and discharges the start capacitor.
- Run Capacitors of rating 72 Mfd provided for smooth running and better life to motor of 2. HP connected to Neon bulb indication for showing motor running condition.
- Ammeter provided with for measuring current consumed by motor pump. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires. [Please see full PRODUCT DESCRIPTION below]

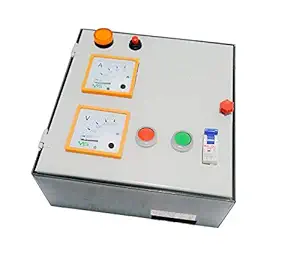

ms control 3 Single phase water pump panel/Submersible Water Pump Submersible Water Pump (3 hp) - Product Features
- MS CONTROL 3. HP Control Panel for single phase Motor Pump provided with 40 Amps BCH type Contactor 4 or 2 pole with easy replaceable heavy duty fixed and moving contacts and Coil Voltage range between 140-220 Volts with easy replacement of coil.
- Switching device provided-Single Pole ( Automatic MCB ) Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 32 Amps which ensures protection against short circuit.
- Start Capacitors of rating 200-250 Mfd provided for giving initial torque to motor of 3. HP connected to Start Button which charges and discharges the start capacitor.
- Run Capacitors of rating 50+50 Mfd provided for smooth running and better life to motor of 3. HP connected to Neon bulb indication for showing motor running condition.
- Ammeter provided with for measuring current consumed by motor pump. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires. [Please see full PRODUCT DESCRIPTION below]
