Motherboard By EC Buying

• CPU: BCM2835 chip 1GHz ARM11 core, SDRAM: 512MB LPDDR2 SDRAM
• Mini HDMI-Compatible: Mini HDMI-Compatible interface X 1 supports 1080p 60Hz video output
• Micro USB power supply: Micro USB interface for power supply and data transmission
• USB On The Go: Micro On The Go X 1, GPIO: 40PIN GPIO interface X 1
• Wireless LAN: 802.11b/g/n, Bluetooth-Compatible: Bluetooth-Compatible 4.1

• Product Features: Equipped with ESP32-C3-MINI-1 module Easy to use and flexible to expand Most of the pins of the module on the board have been led out to the pin headers on both sides Easily connect a variety of peripherals via jumpers Very low power SoC with RISC-V 32-bit single-core processor Supports IEEE 802.11b/g/n (2.4 GHz Wi-Fi) and Bluetooth 5 (LE) The ESP32-C3 series chips with ultra-low power consumption are designed for Internet of Things (IoT) devices
• Wi-Fi Features: .Support IEEE 802.11 b/g/n protocol .Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band .Support 1T1R mode, data rate up to 150 Mbps .4x virtual Wi-Fi interface .Support Infrastructure BSS Station mode, SoftAP mode, Station + SoftAP mode, and Promiscuous mode at the same time Please note that when the ESP32-C3 series chip scans in Station mode, the SoftAP channel will change at the same time .Antenna Diversity .802.11 mc FTM .Support external power amplifier
• Application areas include: Smart Home: Smart Lighting Industrial automation: industrial robots, mesh networking, human-machine interface, industrial bus applications Consumer electronics: smart watches, smart bracelets, OTT TV boxes, set-top box devices Wi-Fi speaker Smart agriculture: smart greenhouses, smart irrigation, agricultural robots Retail catering: POS systems Audio equipment: Network music player Universal low-power IoT sensor hub Universal low-power IoT data logger
• Power Options: You can choose one of the following three power supply methods to power the ESP32-C3-DevKitM-1: ?Micro-USB interface power supply (default) ?5V and GND pin header power supply. ?3V3 and GND pin header power supply It is recommended to choose the first power supply method: Micro-USB interface power supply.
• Required Hardware: ESP32-C3-DevKitM-1 development board USB 2.0 data cable (standard type A to Micro-B type) Computer (Windows, Linux, or macOS)

• Embedded version Mega2560 CH340G ATmega2560, compatible with Mega 2560 motherboard. Construction based on ATmega2560 microcontroller and USB-UART interface chip CH340G
• The printed circuit board has a compact size of 38x55mm. This is a good solution to get your final project on the welded prototype board
• It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz)
• The board uses the chip CH340G as the converter UART-USB. Provides stable data exchange results when you work at a frequency of 12Mhz (requires drivers to be installed on your computer)
• Mega PRO (Embedded) 2560 CH340G / ATmega2560 - Connect to your computer via a micro USB cable

• 24

• Product parameters: USB interface supports download (DFU download, not a serial port) OLED interface one plug and play Support 0.96-inch OLED TFT LCD interface Connect to a 1.44-inch full-color LCD Connect to 1.8-inch full-color LCD Data storage: W25032 High-speed crystal: 25MHz Low-frequency crystal: 32.768K Power + Programmable LED light User and reset buttons All CPU-10 lead out 2.54mm integer multiple pitch pins

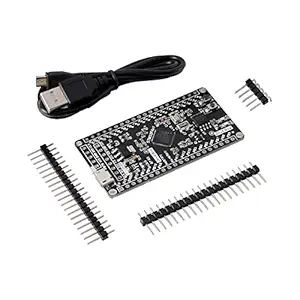

• Describe The STM32F411CE development board is based on a high-performance Arm Cortex-M4 32-bit RISC core running at up to 100 MHz. The Cortex-M4 core has a floating-point unit (FPU) single-precision and supports all ARM processor's single-precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) for enhanced application security.
• ARM processor is a low-power cost RISC microprocessor. The full name is Advanced RISC Machine. The ARM processor itself is a 32-bit design but is also equipped with a 16-bit instruction set, which generally saves up to 35% over the equivalent 32-bit code, but retains all the advantages of a 32-bit system.
• The three major features of the ARM processor are low power consumption and strong functions, 16-bit/32-bit dual instruction set, and suitable for STM32F411CE core board/development board. 1. Small size, low power consumption, low cost, high performance; 2. Support Thumb (16-bit)/ARM (32-bit) dual instruction set, which can be well compatible with 8-bit/16-bit devices; 3. A large number of registers are used, and the instruction execution speed is faster;
• The STM32F411CE microcontroller is suitable for a wide range of applications: Motor drive and application control Industrial application: PLC, inverter, circuit breaker Printer and scanner alarm system, video intercom system, and HVAC Home Audio Equipment Cell Phone Sensor Hub
