Motherboard By POWERX

• Brand: PowerX, Model: PMB - H61, CPU Supports LGA1155 Socket i3/i5/i7 series CPU, Chipset Intel H61 Chipset, Memory: 2*240-pin DDR III SDRAM Slots Memory upto 16GB Supports dual-channel DDRIII 1066MHz/1333/1600 MHz Memory BIOS EFI
• I/O Interface: 1 x HDMI, 1 x VGA, 6 x USB 2.0, compatible with USB 1.1, 1 x RJ45, 1 x 3 in 1 Audio Port(Line in, Line out, Mic in)
• Onboard Interface: 1 x 24-pin ATX Power Connector, 1 x 4-pin ATX 12 V Power Connector, 1 x USB Connectors, can support 2 x USB 2.0, 1 x F_Audio Connector, 1 x F_Panel Connector, 1 x Speaker_Connector 2 x FAN connectors, 4 x Serial ATA connection port.
• Integrated Sound: with 6-channel HD Audio codec Onboard provides front audio interface; provides front stereo mic interface, Integrated LAN: with 10/100 Mbps LAN Onboard. Expansion Slot: 1 x PCI Express x 16 Slot, 1 x PCIEX1 Slot, Dimension: Micro-ATX architecture (170*190mm)
• The LGA1155 socket on Motherboard supports series of Intel Core i7, Core i5, Core i3. Supports dual-channel DDR3 1066MHz/1333/1600 MHz Memory.
• All Combos tested before dispatch
• 3 Year Manufacturer Warranty

• Onboard Interface: 1 x 24-pin ATX Power Connector, 1 x 4-pin ATX 12 V Power Connector, 2 x USB Connectors, can support 4 x USB 2.0, 1 x F_Audio Connector, 1 x F_Panel Connector, 1 x Speaker_Connector, 2 x FAN connectors, 4 x Serial ATA connection port, 1 x 40-pin IDE port.
• Integrated Sound: with 6-channel HD Audio codec Onboard provides front audio interface; provides front stereo mic interface. Integrated LAN: with 10/100 Mbps LAN Onboard. Expansion Slot: 1 x PCI Express x 16 Slot, 1 x PCI Slot, conformed to PCI v 2.3 specification. Dimension: Micro-ATX architecture (172*235mm)
• Brand: PowerX, Model: PMB - G41, Supports LGA775 CPU, Supports FSB 533/800/1066/1333 MHZ CPU, Chipset: Intel 82G41 + 82801GB Supports GMAX 4500 Graphics, Memory: 2*240-pin DDR III SDRAM Slots Memory upto 8GB Supports dual-channel DDR3 800MHz/ 1066MHz Memory
• I/O Interface: 1 x PS/2 Keyboard Port, 1 x PS/2 Mouse Port, 1 x COM. 1 x VGA, 4 x USB 2.0, compatible with USB 1.1, 1 x RJ45, 1 x 3 in 1 Audio Port( Line in, Line out, Mic in).
• The LGA775 socket on Motherboard supports Intel CPUs from 1.8 to 3.8 GHz with Front-Side Bus frequencies ranging from 533 MHz to 1333 MHz, as the G41 chipset capable to handle embedded computing applications needing HD video playback and 3D graphics.

• CPU: Socket 775 Intel Core 2 Quad/ Core 2 Duo / Pentium Series / Celeron Series, Chipset: North Bridge - Intel G41 South Bridge - Intel 82801GB, Memory: 2 DDR II dual-channel RAM Slots Memory upto 4GB Supports DDR II 800MHz / 667MHz Memory, 2 x DIMM Slots BIOS: AMI Bios.
• I/O Interface: 1 x PS/2 Keyboard port and 1 x PS/2 Mouse port 1 x VGA, 4 x USB 2.0 1 x RJ45 port, 1 x 3-in-1 Audio Port (Line in / out / MIC In).
• Onboard Interface: 1 x Front Panel Connector, 1 x Front Audio Connector, 1 x J_COM Connector, 2 x F_USB Connectors, can support upto 4 x USB 2.0 4 x Sata Ports, 1 x IDE Slot, 1 x 4 pin CPU Fan Connector, 1 x 24-pin ATX Power connector 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header.
• Integrated LAN: Supports RTL8106E, 10/100 Mbps Ethernet LAN, Expansion Slot: 1 x PCI Express x 16 slot, 1 PCI slot, Form Factor: Micro-ATX

• Onboard Interface: 1 x 24-pin ATX Connector, 1 x 4-pin ATX 12V power connector, 1 x USB Connector, can support 2 x USB 2.0 & 1 x USB Connector, can support 2 x USB 3.0, 1 x F_AUDIO Connector, 1 x F_PANEL Connector, 1 x SPEAKER Connector, 2 x FAN Connectors, 3 x Serial ATA Connection ports, 1 x mSATA Slot
• Integrated Sound: With 6-channel HD Audio Codec onboard, Porivdes front audio interface; provides front stereo mic interface.
• Integrated LAN: With 10/100 Mbps LAN onboard
• Expansion Slot: 1 x PCI Express x 16 slot
• Dimension: Mirco-ATX architecture (16.8\" x 19.6\" cm)
• All Combos tested before dispatch
• 2 Year Manufacturer Warranty

• CPU: LGA775 for Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium Dual Core, Pentium D, Pentium 4, Celeron (Conroe-L) and next generation 45nm Yorkfield & Wolfdale Processors.
• Chipset: Intel 82G31 + 82801GB, Supports GMA3100 Graphics, Dimension: Mirco-ATX architecture (17 x 21 cm), BIOS: AMI Bios.
• Memory: 2 x DDR2 SDRAM Slots, Memory upto 4GB Supports dual-channel DDR2 800MHz / 667MHz Memory
• I/O Interface: 1 x PS/2 Keyboard port and 1 x PS/2 Mouse port, 1 x COM, 1 x VGA, 4 x USB 2.0, Compatible with USB 1.1, 1 x RJ45 port, 1 x 3-in-1 Audio Port (Line in / out / MIC In)
• Onboard Interface: 1 x 24-pin ATX Connector, 1 x 4-pin ATX 12V power connector, 2 x USB Connectors, can support upto 4 x USB 2.0 , 1 x S/PDIF output connector, 1 x F_AUDIO Connector, 1 x F_PANEL Connector, 1 x SPEAKER Connector, 2 x FAN Connectors, 4 x Serial ATA Connection port, 1 x 40-pin IDE port.
• Integrated Sound: With 6-channel HD Audio Codec onboard, Provides front audio interface; provides front stereo mic interface
• Integrated LAN: With 10/100 Mbps LAN onboard.

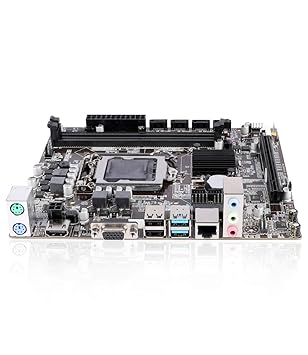

• Brand: PowerX, Model: PMB-H110 DDR4, CPU: Support LGA 1151 & Supports 6th / 7th Generation I3/I5/I7, Chipset: Intel H110 Chipset
• Memory: 2*284-pin DDR 4 SDRAM Slots, Memory upto 16GB Supports dual-channel DDR 4 2133MHz Memory AMI EFI BIOS
• I/O Interface: 1 x P/S 2, 1 x VGA port, 1 x HDMI port, 2 x USB 2.0, Compatible with USB 1.1 & 2 x USB 3.0, 1 x RJ45 port, 1 x 3-in-1 Audio port (Line in / out / MIC In)
• Onboard Interface: 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector 2 x USB Connector, can support 4 x USB 2.0 & 1 x USB Connector, can support 4 x USB 3.0 1 x F_AUDIO Connector, 1 x F_PANEL Connector, 1 x SPEAKER Connector 2 x FAN Connectors, 4 x Serial ATA Connection ports
• Integrated Sound: With 6-channel HD Audio Codec onboard Porivdes front audio interface; provides front stereo mic interface
• Integrated LAN: With 10/100 Mbps LAN onboard
• Expansion Slot: 1 x PCI Express x16 Slot
