Motherboard By UG LAND INDIA

• A single module can drive an 8 * 8 common cathode lattice
• Module operating voltage: 5V
• Module size: 5 cm in length X width 3.2 cm x 1.5 cm
• Including four screws hole, aperture 3mm
• Module with input and output interface, supports multiple modules cascade

• Display: 4 Lines x 20 characters Back light: Blue with white Character color
• LCD controller: HD44780 Pin Definition: VCC/ GND/SDL and SCA
• Contrast Adjust: Potential meter Back light Adjust: Jumper
• Default Address: 0x27, 0x3F Working Voltage: 5V
• Built-in industry standard HD44780 equivalent LCD controller LCM type: Characters

• Over current protected, Max 150mA output.

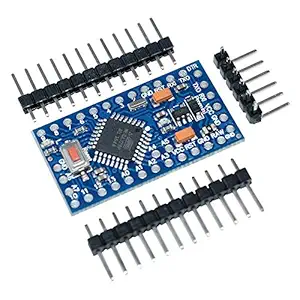

• 3.3V regulator, ATmega328 running at 8MHz with external resonator (0.5% tolerance).
• This is a professional version of the Mini Pro, is a microcontroller circuit board.
• It has been programmed for its bootloader, without the user to buy ISP burner for programming, user-friendly.
• Low-voltage board; easy to interface with popular 3.3V devices and modules such as GPS, accelerometers, sensors, etc.
