Motherboard By WayPonDEV

• [RV64 Linux Platform] Nezha is based on Allwinner's newest RISC-V chip , D1@1.0GHz ( T-HeadXuanTie c906 core ) .with 2GByte DDR3 and 256MByte onboard Nand Flasht. lt has basic resources and environments that allow you to research RV64 features on itself , just like a desktop PC.
• [Allwinner D1 SoC] Allwinner D1 has XuanTie C906 64-bit RISC-V processor @ 1.0 GHz with HiFi4 DSP, G2D 2D graphics accelerators, Memory 2GB DDR3 memory Storage 256MB SPI NAND flash, MicroSD card slot.
• [Encoding] JPEG/MJPEG up to 1080p60,Audio 3.5mm audio jack, digital audio output via HDMI, a connector for Microphone Array board,Connectivity Gigabit Ethernet via RTL8211F PHY, 2.4GHz WiFi 4 & Bluetooth module via XR829 module.
• [lOT-friendly] Nezha Single Board Computer is not designed for heavy computation applications but designed forthe RV64 opensource community and loT applicationlt. lt is easily run withouta heatsink, and the temperature is below 50c, chip power consume <0 . 1A 5V.
• [Rich Peripherals] Nezha has most of the peripherals you need in loT applications :MIPI LCD ,HDMI ,USB ,ETH .SPI/ UART / lC/ PWM/ LEDC/ lS / GPIOs.You can build your projects easily and quickly .
• [Open-Source] Nezha has an open-source SDK thus that will allow us to port Debian Desk-top System to it ,and we can test many popular program environments on it: C/C++,Js , WASM, Rust ,Golang , Python , etc.
• [Wiki] Any after-sales problems, please contact us by click WayPonDEV store and ask a question or leave the message in our forum by \"forum.youyeetoo .com/\".

• [AX620A Soc] Sipeed M3AXPI Linux single board computer with high computing power, high energy efficiency ratio and low power consumption AI SoC chip, the chip integrates a quad-core Cortex A7 @ 1Ghz CPU, has a high computing power NPU with 3.6TOPs@INT8, supports 4K@30fps ISP, and supports H.264 , H.265 encoded VPU.
• [Excellent Storage ] Sipeed M3AXPI Linux single board computer support 32bit LPDDR4x 2GB RAM, EMMC v5.1 / SPI Flash, support up to 6 channels of MIPI input, support up to 4 channels of work at the same time, support multiple sub-streams, 1 channel Gigabit Ethernet, 1 channel USB2.0, 2 channels MIPI DSI /CSI output.
• [Multi-interface function] Sipeed M3AXPI Linux single board computer support Gigabit Ethernet (ETH) and 2.4GHZ WI-FI onboard antenna; two MEMS MICs onboard support dual microphone noise reduction; 1 x USB2.0HS, support OTG or HOST function, 1 x USB -UART system serial port; lead out CJTAG, you can connect to the corresponding debugger by yourself, 2 x 12 pin headers, 4 x M2.5.
• [Support Python Programming] The debian11 Linux system supports SD card to start the DD burning system, which is convenient for users to get started out of the box, and supports Python API programming and AIoT Edge computing to develop AI applications.
• [Open BSP SDK Source Code] Sipeed M3AXPI Linux single board computer is providing various development source codes, provide API development documents, SDK development methods and other instructions.
• [Wiki] Open source organization: https://github.com/sipeed; AI service: https://maixhub.com/welcome; Any after-sales problems, please contact us by click WayPonDEV store and ask a question or leave the message in our forum by \"forum.youyeetoo .com/\".

• [High-performance DSP] Sipeed Tang Primer 20K Core Module board is sodimm package,uses GW2A-LV18PG256C8I7 as the main chip, and hasmultiple internal resources, such as high-performance DSP,high-speed LvDs interface and BSRAM resources, on-boardDDR3 and PMIC. Users could use this CM board for rapiddevelopment and verify, and it's suitable for high-speedand low-cost situations.
• [Run RISC-V Code] Users can burn the hardware code bitstream file ofPicoRV/Litex to Gw2A, and then use GW2A as acommon MCU. lt can run RISC-V code, conduct RISC-v soft core experiments
• [Verilog Design] Users use Verilog to design custom hardware func-tions on the basic of PicoRV/Litex lP core, and at thesame time use C language to write code running onPicoRV/Litex core.
• [Rich Peripheral interfaces]Sipeed Tang Primer 20K Dock is equipped with a wealth of pe-ripheral resources, such as onboard USB-JTAG & UARTperipheral , Ethernet PHY and RJ45 connector, USB2.0PHY?HDMIl output connector,Audio output circuit and3.5mm connector?RGB screen connector,DVP cameraconnector.
• [PMOD interfaces] Sipeed Tang Primer 20K Lite ext-board routes so many lOs todouble row pin headers and PMOD interfaces, with whichusers could easily connect other peripheral modules or cir-cuits for secondary development.

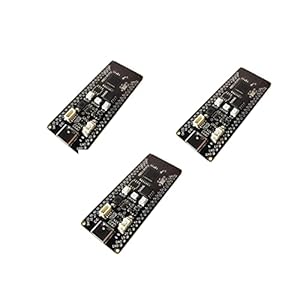

• [Package Content] You will get 3pcs ESP32-S3 2.4GHz Dual Mode WiFi Development Boards, enough for your daily use and replacement
• [Low Power Consumption] It supports 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, the peripheral is compatible with low-power hardware design, and the power consumption is only 10uA in deep sleep mode.
• [Power supply] The main controller supports two power supply inputs: USB and external 3.7V lithium battery with a maximum charging current of 500mA, both can be freely replaced. The battery can also be charged while USB is plugged in.
• [Small size] Compact size, various interfaces, easy to use, and can be directly applied to low-power IoT projects.
• [Easy to Program] The Leaf-S3 supports ESP-IDF, Arduino, Micropython and other methods.
• [Wiki] https://github.com/BPI-STEAM/BPI-Leaf-S3-Doc/blob/main/Example/Arduino/readme.md. If you have any questions, please post them on our forum: https://forum.youyeetoo.com/

• ESP32-IoT Board: An embedded system based on ESP32 with 32-bit Xtensa LX6 dual-core processor
• Operating system: It supports Webduino, Arduino, MicroPython as well as Scratch X programming environments
• BPI:bit has 25 LEDs on board, it can be controlled with a single GPIO
• The 9-axis MPU9250 sensor is placed on the BPI:bit board. and MPU9250 uses I2C 0x69 address
• Three power delivery modes: Micro USB port; 2-pin battery power supply socket and the gold finger
• Wiki: https://wiki.banana-pi.org/BPI-Bit. If you have any questions, please post them on our forum: https://forum.youyeetoo.com/

• [High-Performance SBC] BPI-M4 Berry is open source powerful single board computer, based on Allwinner H618 SoC with Quad-core ARM Cortex-A53 CPU and ARM Mali G31 GPU, onboard LPDDR4 2GB RAM 8GB eMMC, integrated Wi-Fi & BT Module.
• [Multifunctional interface] BPI-M4 Berry single board computer onboard 40 PIN header, 4x USB2.0 Type-A host, 1x USB2.0 Type-C OTG, 1x GbE Ethernet port, 1x full-size HDMI 2.0, 1x 3.5mm Audio & TVE jack socket, 1x MicroSD card slot, UART, SPI, TWI/I?C, PWM, PCM/I?S. M4 Berry can also be connected to the POE module of Ras-p-berry Pi.
• [Support 4K Encoding and Decoding] BPI-M4 Berry single board computer have excellent image processing capabilities, onboard HDMI2.0 interface (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output. Meets a wide range of media servers, IoT and entertainment facilities.
• [Widely Application Scene] BPI-M4 Berry linux single board computer can be widely used to Media Center, IoT Smart Internet of Things, Intelligent speech recognition,wireless server, Industrial control and Intelligent robot.
• [Developed based on Linux] BPI-M4 Berry linux IoT development board support Ubuntu, Debian system. Getting Started: \"https://wiki.banana-pi.org/Getting_Started_with_BPI-M4_Berry\". installation video: \"https://www.youtube.com/watch?v=GAZsUDYL0DE\".
• [Wiki] Datesheet SDK Document download please click \"WayPonDEV\" store and ask the question. All after-sales questions, please leave the message to \"wpd#youyeetoo&com (#->@,&->.)\".

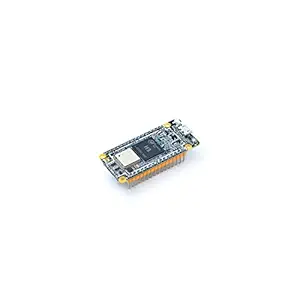

• [Dual-in-line] NanoPi Duo2 is a dual-in-line ultra-small maker artifact with a size of only 55x25.4mm. It uses Allwinner quad-core A7 processor H3, equipped with 256M/512M DDR3 memory, onboard WiFi Bluetooth module, and provides OV5640 camera interface, which can run a complete embedded Linux system such as Ubuntu Core.
• [Small and Exquisite] NanoPi Duo2 can be directly powered by MicroUSB, supports Micro SD card to directly start the operating system, and can be directly inserted into a breadboard for use.
• [Rich interfaces] It leads out USB, SPI, UART, I2C, PWM, IR, audio input and output, 100M Ethernet and other interface pins, which is very convenient for debugging and development.
• [Open Source & Rich Resources] NanoPi Duo2 can support the use of RPi.GPIO, WiringNP, Python and other programming libraries. It is completely open source and very suitable for lightweight IoT application development.
• [OS/Software] U-boot, Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial)
• [Wiki] https://wiki.friendlyelec.com/wiki/index.php/NanoPi_Duo2; Any after-sales problems, please contact us by email: monica#smartfire.cn (#->@).Also can click WayPonDEV store and ask a question or leave the message in our forum by \"forum.youyeetoo .com/\".
